Sälzer Safety Window Series S2es-w

Combined burglar, bullet and blast resistance for maximum security requirements

The S2es-w series aluminium high security window stands for versatile, inter-compatible burglar, bullet and blast resistance up to the highest resistance classes.

The system successfully withstood break-in attempts with high-performance power tools (e.g. jigsaw and large angle grinder) up to the highest class RC 6, ballistics tests with rifles and armour piercing ammunition up to the highest class FB7-NS, and blast resistance tests with up to 500 kg of explosives.

The construction was tested as a complete window unit including glazing and wall attachment.

In the SÄLZER® SYSTEM, the windows can be combined and integrated with all door and façade systems. This guarantees complete burglar, bullet and blast resistance up to the highest resistance classes.

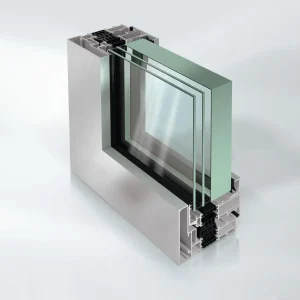

The block window with concealed vent has maximum thermal insulation and stands for sophisticated designs and design freedom. Various tested design options, such as fixed lights, bottom-hung vents, turn/tilt vents and window doors are available for individual solutions and installation situations, and to meet architectural requirements.

The window construction offers maximum security against criminal activity and terrorist attacks, and provides additional protection against the negative effects of incidents and accidents, such as those in the chemical or petrochemical industries.

Identical profile face widths guarantee a visually neutral and uniform appearance. The security components are integrated in the profile core so that no additional profiles have to be fitted from the outside.

Contact consultation Contact us for product advice!
Description

Planning benefit

  • The aluminium block window construction has been tested and certified in accordance with DIN 1627-1630 (burglar resistance), DIN EN 1522-1523 (bullet resistance) and DIN EN 13123-2 | DIN EN 13124-1 (blast resistance). The window has also been tested with up to 500 kg of explosives and with a long pressure duration (up to 2 seconds).
  • No screw fixing required for the glass retention beads, so no impact on appearance.
  • Various design options tested.
  • Always identical face widths, even with different resistance classes and combinations.
  • Natural glazing rebate ventilation and controlled drainage as no bonding is required for the glass.
  • High security window tested in accordance with the structural performance properties of DIN EN 1435-1 and CE certification.
  • Heavy vent weights possible; side-hung fittings up to 350 kg permitted, bottom-hung and turn/tilt fittings up to 200 kg.
  • Triple insulating glass possible due to basic depth.

Technical information

Technical Specification Value
Min. Face Width 117 mm
Min.-Max. Glass/Panel Thickness 10-102 mm
Max. Weight 350 kg
Burglar Resistance Up to RC 6
Bullet Resistance Up to FB 7-NS
Blast Resistance Yes
Basic Protection Against Vandalism Yes
Air Permeability Class 4
Watertightness E 1050
Wind Load Resistance Class C5 / B5
Max. Sound Reduction Index (Rwp) 45 dB(A)
Safety Can Be Combined Yes
Max. Glass/Panel Thickness 102 mm
Area of Application Internal use, External use, Residential, Commercial, Window, Façades, Transaction windows
Type of Design Single-vent, For use in façade, Multi-vent, Side sections and/or toplights
Use Window, Fixed glazing
Special Applications Transaction window
Concealed Fittings System No
Direction of Opening Inward
Impact Resistance Class 5
Mechanical Strength Class 2, Class 3, Class 4
Proof of Durability DIN EN 12400, Class 3
Uf Value of Frame (≥) 0.8 W/(m²·K)
Security System Yes
CE Marking Yes
Standards DIN EN 14351-1, DIN EN 1627-1630, DIN EN 1522-1523, DIN EN 13123-2/13124-2, DIN EN 13123-1/13124-1
