Façade System FWS 35 PD

Panorama Design façade with integrated solution for all-glass corners without profiles

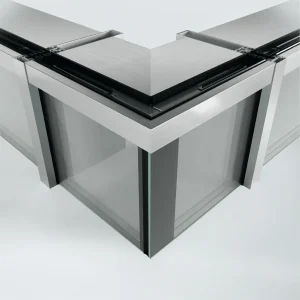

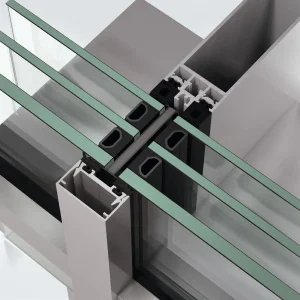

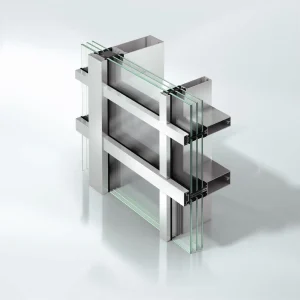

Architecture flooded with light and with maximum transparency, without compromise: the Schüco FWS 35 PD (Panorama Design) façade system offers a system-integrated solution, which allows for all-glass corners without vertical mullion profiles. The result is representative Panorama Design façades with a first-class visual appearance and an ideal view to the outside, which meet the highest requirements in high-end residential and commercial construction.

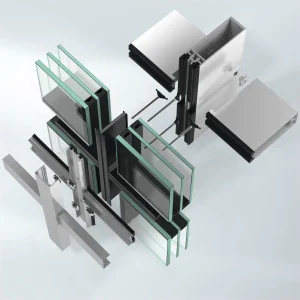

The system platform for the mullion/transom façade provides an enhanced range of accessories with a high degree of fabrication reliability, e.g. visually discreet attachment components for Schüco sun shading systems and tested burglar resistance solutions.

Combining different Schüco Panorama Design systems enables the complete seamless integration concept for the whole building envelope. Seamless stands for the concealed connection of Panorama Design constructions. The Schüco ASS 77 PD sliding door system is integrated in the Schüco FWS 35 PD mullion/transom façade system for an even profile transition with no offset. Both systems have extremely narrow profile face widths, but also achieve a high level of thermal insulation up to passive house level.

Contact consultation Contact us for product advice!
Description

Planning benefit

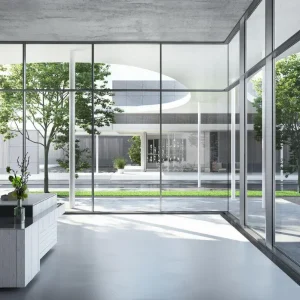

  • Excellent design with high-quality appearance: all-glass corner without distracting profiles for maximum transparency in the corner area
  • System components for connecting Schüco sun shading systems: reduction in cooling loads and energy consumption in the building
  • Seamless visual integration of Schüco opening units with a high level of planning reliability, e.g. with the Schüco AWS 75 PD.SI Panorama Design window system and the Schüco AWS 114 and Schüco AWS 114.SI window systems as projected top-hung and parallel-opening vents with concealed Schüco TipTronic actuators
  • Visually unobtrusive system components with minimal thermal bridging: perfect integration of Schüco sun shading systems in the façade, even with extremely narrow profiles

Technical Specification

Technical Specification Value
Uf Value of Frame (≥) 1.4 W/(m²·K)
Min. Face Width 35 mm
Min.-Max. System Basic Depth 65 – 150 mm
Max. Glass/Panel Thickness 50 mm
Max. Weight 400 kg
Surface Finishes Powder, Anodised, Paint
Air Permeability AE
Max. Sound Reduction Index Rwp 51 dB(A)
Watertightness RE 1200
Impact Resistance I5/E5
Burglar Resistance Up to RC3
Suitable for Safety Barrier Loading Yes
Min. System Basic Depth 65 mm
Max. System Basic Depth 150 mm
Min. Basic Depth of Mullion 65 mm
Max. Basic Depth of Mullion 125 mm
Min.-Max. Basic Depth of Mullion 65 – 125 mm
Max. Unit Weight 400 kg
Min.-Max. Face Width 35 mm
Face Width of Pressure Plate / Cover Cap Profile 35 mm
Face Width, Outside 35 mm
Face Width, Inside 35 mm
Face Width of Mullion 35 mm
Face Width of Frame 35 mm
Face Width of Transom 35 mm
Min. Glass/Panel Thickness 4 mm
Min.-Max. Glass/Panel Thickness 4 – 50 mm
Max. Glass/Infill Weight 400 kg
Installation Angle 85-105 °
Polygon Façade Angle 90 °
Drainage Yes
Drainage Levels 3
Earthquake Protection Yes
Wind Load Resistance 2.0/3.0 [kN/m²]
Sun Shading Attachment Yes
Spandrel Safety Barriers Surface-mounted, Façade-mounted
Blast Resistance No
Certificates Passive house certificate, CE marking, Passive house compliant, Passive house class phA
Recyclable Yes
Standards DIN EN 1627, EN ISO 10077, DIN EN 13830, General building authority approval
CWCT Certified Yes
Building Authority Approval Yes
European Technical Assessment Yes
Tested All-Glass Corner Yes
